As one of the core applications in the field of the Internet of Things, RTLS (Real-Time Location System) asset tracking technology achieves high-precision dynamic tracking of assets in the physical world through the deep integration of wireless communication and positioning algorithms. This technology not only reshapes the operating model of industries such as industrial manufacturing, logistics warehousing, and medical health, but also becomes a key infrastructure for the digital transformation of enterprises. Its technical architecture consists of four core modules, each of which carries specific functions and together builds an asset tracking network covering all scenarios.
Tag: "Digital imprint" of asset identity
Tags are the bridge between the RTLS system and physical assets, and their technological evolution directly determines the application boundary of the system. According to the working principle and functional characteristics, tags can be divided into three categories:
Passive tags (RFID)
Get energy from the reader through electromagnetic induction, without built-in power supply, and the cost is as low as US$0.1 per piece. In the retail industry, ultra-high frequency RFID tags can read 200 items of product information in batches, with an identification speed of 300 pieces per second. However, its positioning accuracy is limited to the regional level (3-5 meters) and relies on a dedicated reader network.
Semi-active tag (BLE Beacon)
Powered by built-in button battery, it supports low-power broadcast signals and has a battery life of up to 3-5 years. The EDDYSTONE protocol tag used in the medical field can simultaneously broadcast data such as device ID, power, temperature, etc., and achieve room-level positioning (1-3 meters) through received signal strength indication (RSSI). After a tertiary hospital deployed 2,000 BLE tags, the device search time was shortened from 45 minutes to 2 minutes.
Active tag (UWB/GNSS)
Using ultra-wideband (UWB) or global navigation satellite system (GNSS) technology to achieve centimeter-level positioning accuracy. Industrial-grade UWB tags support wide operating temperatures of -40℃~85℃, with a positioning update frequency of 100 times/second. In the automobile welding workshop, the position of the welding robot can be tracked in real time with a positioning error of less than 10 cm. GNSS tags use differential enhancement technology to achieve 0.5-meter accuracy in outdoor scenes, and are widely used in container tracking and agricultural machinery scheduling.
Positioning base station: "measurement scale" of spatial coordinates
Base stations are the core nodes for signal reception and processing, and their deployment strategy directly affects the system coverage and positioning accuracy. According to technical principles, base stations can be divided into two categories:
Regional coverage base stations (RFID/BLE)
Using RSSI ranging technology, the tag distance is estimated through the signal attenuation model. In the warehousing scenario, a single BLE base station can cover an area with a radius of 10 meters and support 100-500 tags to access at the same time. After deploying 50 BLE base stations in an e-commerce warehouse, shelf-level positioning in an area of 200,000 square meters was achieved, and inventory counting efficiency was increased by 60%.

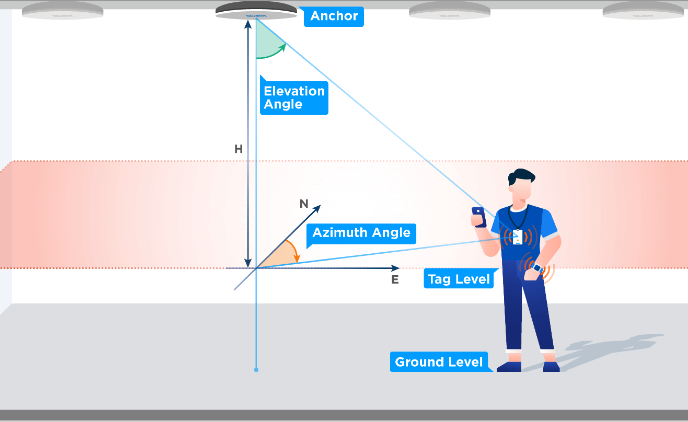

High-precision positioning base station (UWB/AOA)
Using time difference of arrival (TDOA) or angle of arrival (AOA) algorithms, sub-meter positioning is achieved. UWB base stations achieve 10 cm accuracy within a range of 100 meters through two-way ranging (TW-TOF) technology, and have strong anti-multipath interference capabilities. In semiconductor manufacturing workshops, UWB base stations are deployed at 20-meter intervals to accurately track the location of ultra-precision equipment such as lithography machines to avoid collision accidents.
Positioning engine: the "conversion furnace" from data to value
The positioning engine is the "brain" of the RTLS system, and its algorithm performance directly determines the positioning accuracy and response speed. The current mainstream technologies include:
Triangulation positioning algorithm
Based on the ranging data of at least three base stations, the tag position is determined by geometric calculation. In a two-dimensional plane, the positioning error of the TDOA algorithm is inversely proportional to the base station distribution density. The UWB system deployed at an airport reduces the luggage cart positioning error from 0.8 meters to 0.3 meters by optimizing the base station topology.
Fingerprint positioning algorithm
Pre-collect spatial signal characteristics (RSSI/CSI) to establish a database, and achieve positioning through pattern matching. In complex indoor environments, the fingerprint positioning accuracy can reach 0.5 meters, but the database needs to be updated regularly to cope with environmental changes. A hospital uses Wi-Fi fingerprint positioning technology to shorten the positioning time of medical equipment from 15 minutes to 8 seconds.
Inertial navigation fusion algorithm
Combined with accelerometer and gyroscope data, Kalman filtering is used to eliminate the influence of signal occlusion. In the logistics sorting scenario, the UWB+IMU fusion positioning system increases the continuity of package tracking to 99.9%, and can maintain accuracy even after passing through metal conveyor belts.
Application service layer: the "last mile" of scene landing
The application service layer converts positioning data into business insights, and its functional architecture includes three modules:
Visual monitoring platform
Through 3D digital twin technology, the location and status of assets are mapped in real time. The RTLS system deployed by a certain automobile assembly plant can simultaneously display the real-time location and usage times of 2,000 fixtures, reducing tool preparation time by 40%.
Intelligent early warning system
Based on electronic fence technology, an alarm is triggered when an asset enters/leaves a designated area. In the chemical park, the RTLS system uses UWB+GPS hybrid positioning to implement full-process monitoring of hazardous goods transport vehicles, and the response time for illegal stop warning is less than 2 seconds.
Process optimization engine
Analyze asset movement trajectories and explore process bottlenecks. A certain electronic manufacturing company found through the RTLS system that 30% of material handling routes had cross-interference. After optimization, the balance rate of the production line increased by 18%, saving more than 2 million US dollars per year.
From centimeter-level positioning to business value creation, the four core modules of RTLS asset tracking technology form a precision-operating ecosystem. With the iteration of technology and the deepening of scenarios, this system will continue to release data potential, build an unrepeatable competitive advantage for enterprises, and become an infrastructure-level technology in the era of the Internet of Things.
