Blueiot RTLS Tags

Bluetooth Location Tags for Indoor Position Tracking


Blueiot Bluetooth location tags serve as an indispensable part of RTLS applications and have been developed into a variety of forms applicable to varied scenarios. Stably attached to  employees, vehicles or assets, our Bluetooth tag trackers interact with locating anchors or with each other in ways of data transmission, buzzing, vibration, etc.


RTLS tags are widely used for asset tracking, vehicle tracking, employee & patient location tracking, etc. Since varied scenarios have different requirements for location tags, Blueiot has developed four types of RTLS tags for customers to choose from. If you need customized service, become Blueiot partner to further customize the tags!

Types of Blueiot RTLS Tags

bluetooth location tag bluetooth location tag

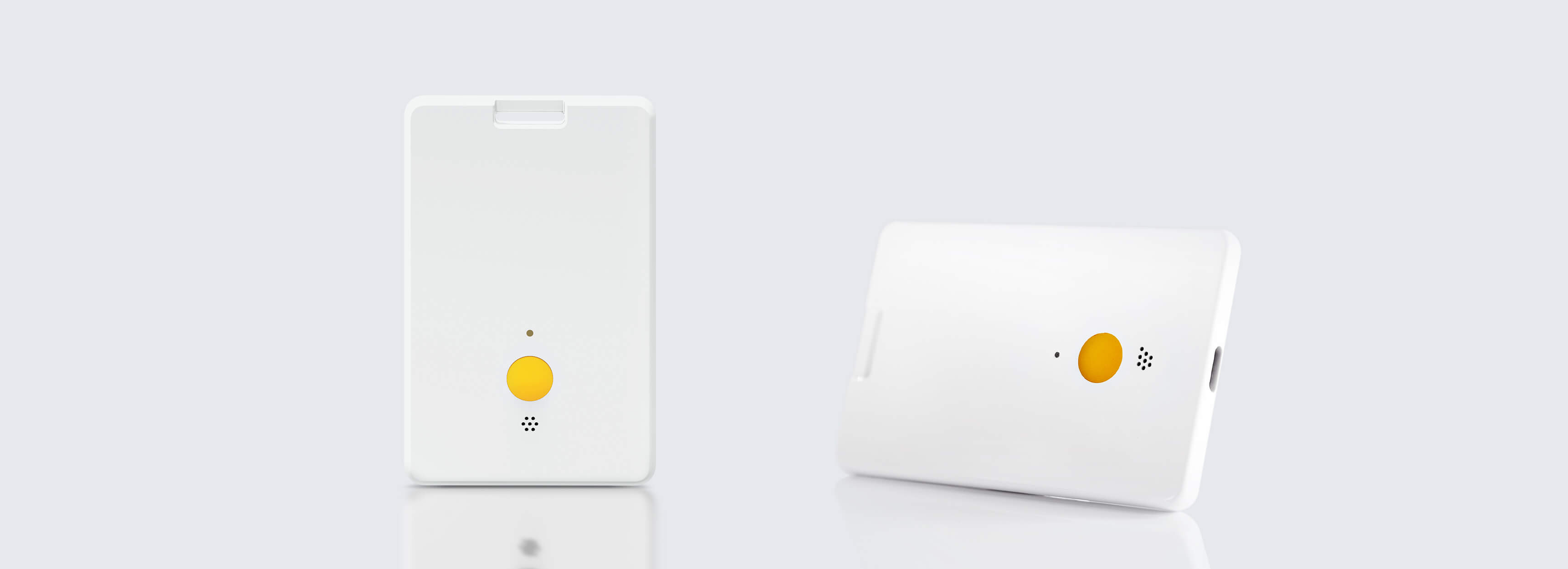

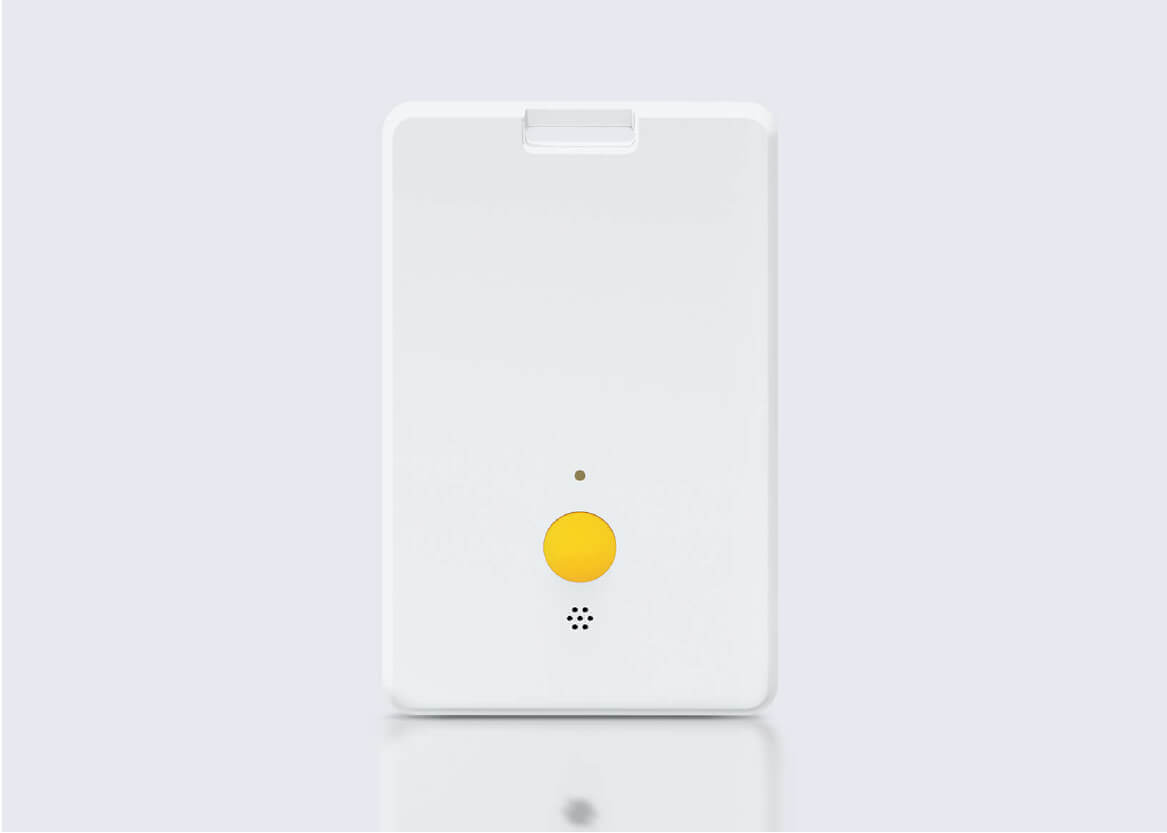

Card Type
BT1000-g
Features
High precision positioning, ranging accuracy up to 0.1~1m
Card design, easy to carry
RFID compatible, can be used for access control/consumption system, multi-application card
Technical Specification
Frequency Band
2.4GHz ~ 2.4835GHz
Type of Antenna
Built-in omnidirectional antenna
Ranging Accuracy
0.1 ~ 1m
Refresh Rate
0.1Hz-30Hz, adjustable
Size
< 85mm×55mm×6mm
Weight
30g
Buzzing
Alarm button
Vibration
RFID swipe card
bluetooth location tag bluetooth location tag

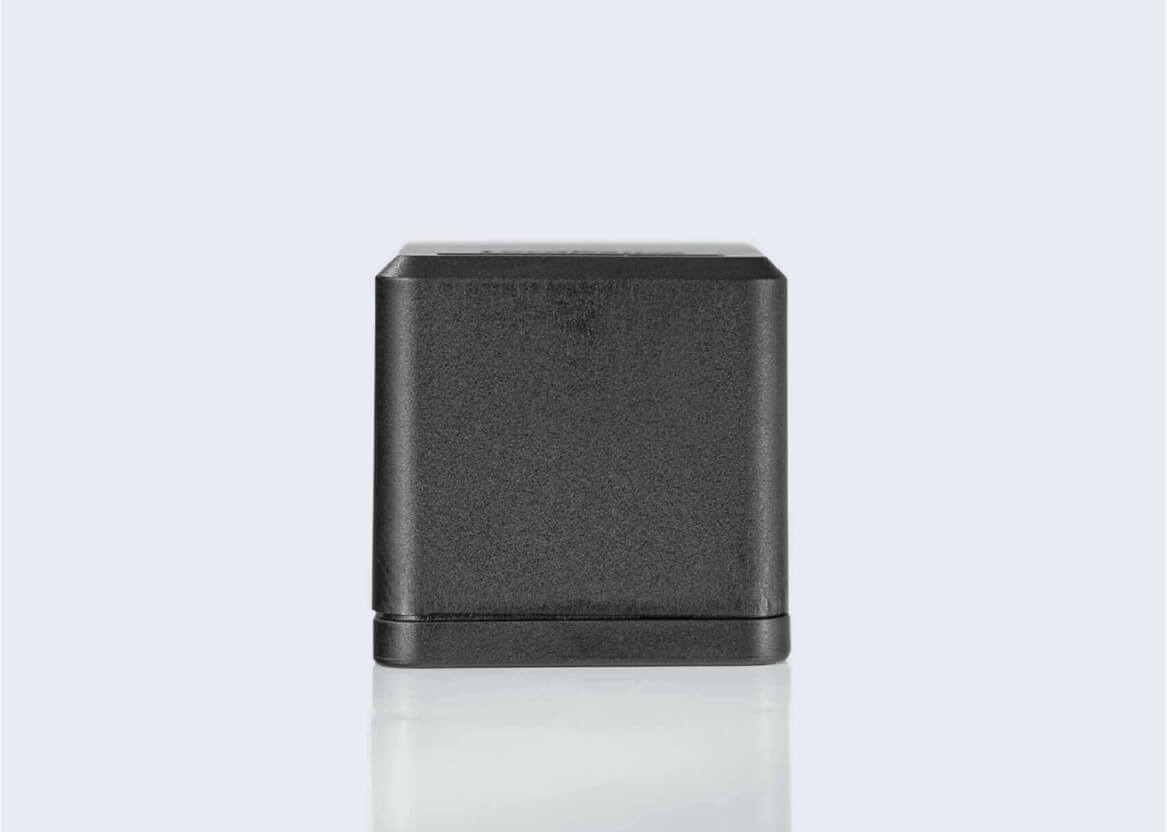

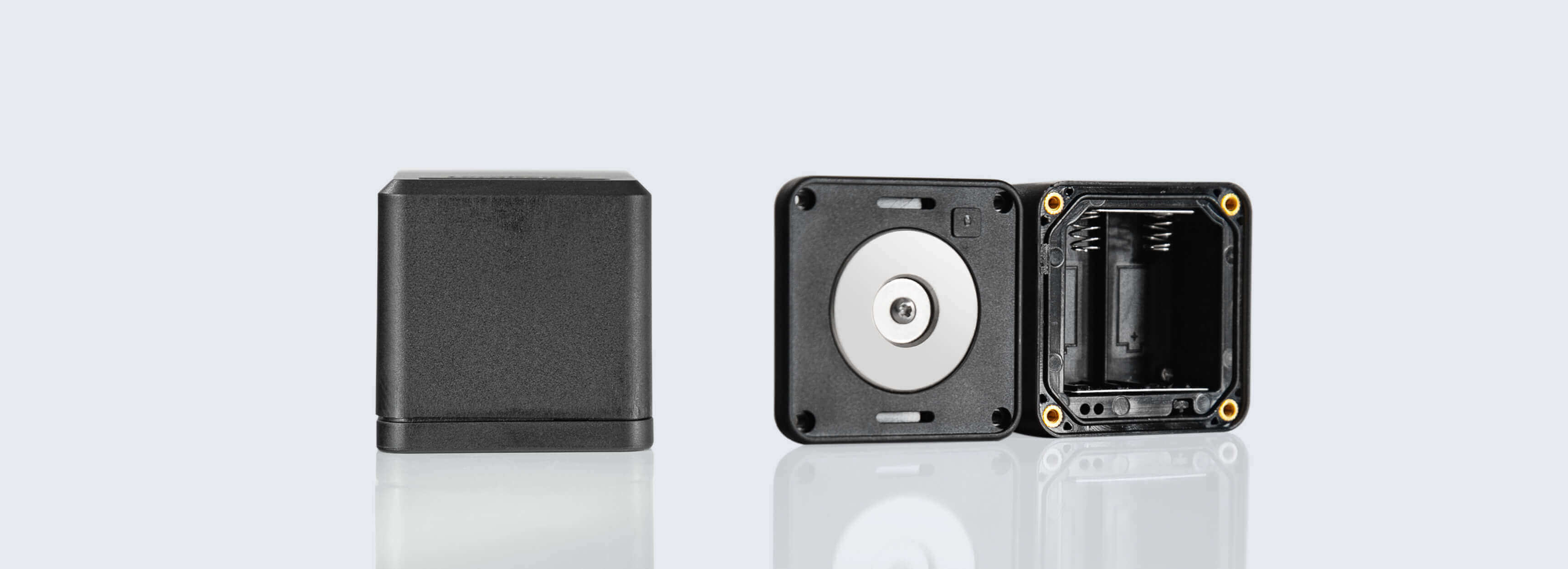

Vehicle Type
BT2000-z
Features
High precision positioning, ranging accuracy up to 0.1~1m
Ultra-long standby time, typical standby time can be up to 5 years
IP67 protection level, suitable for the harsh environment of industrial scenes
Technical Specification
Frequency Band
2.4GHz ~ 2.4835GHz
Type of Antenna
Built-in omnidirectional antenna
Ranging Accuracy
0.1 ~ 1m
Refresh Rate
0.1Hz ~ 30Hz,adjustable
Size
< 42mm×42mm×40mm
Weight
96g(Containing battery)
Long battery life
RFID swipe card
LED search instructor
Multiple installation methods
bluetooth location tag bluetooth location tag

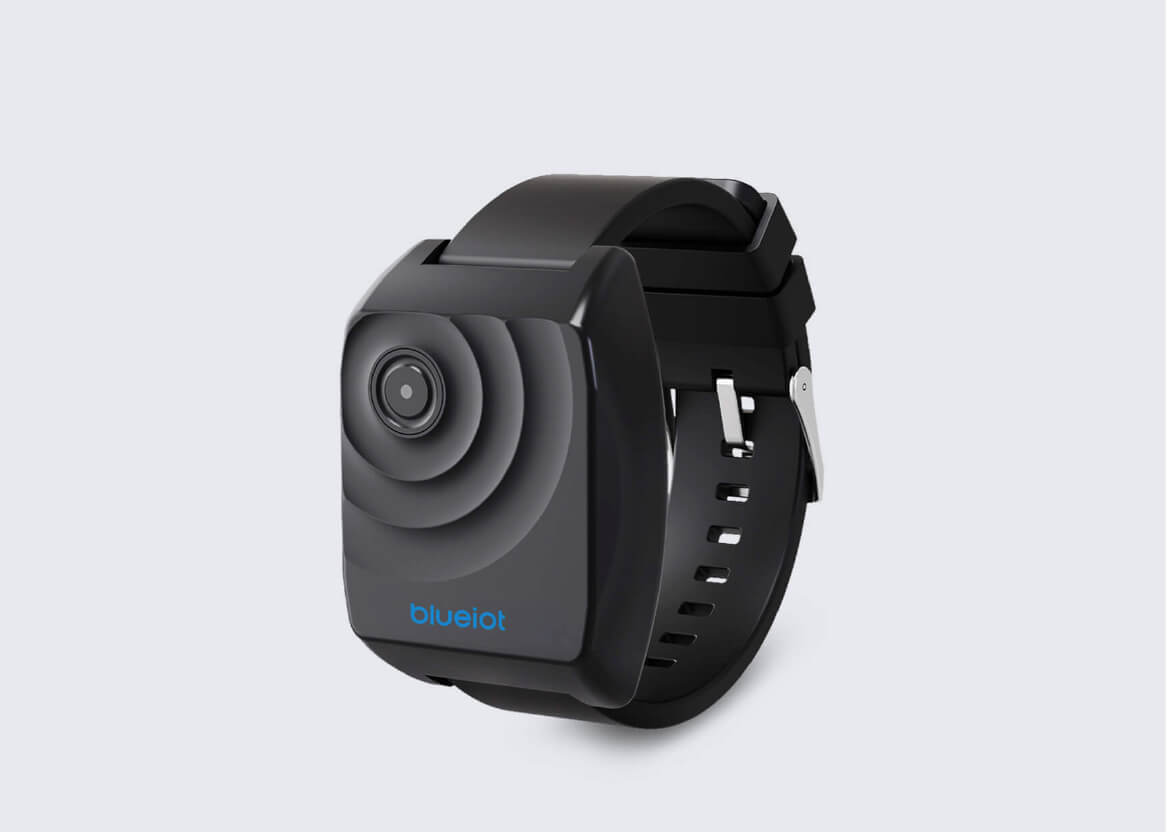

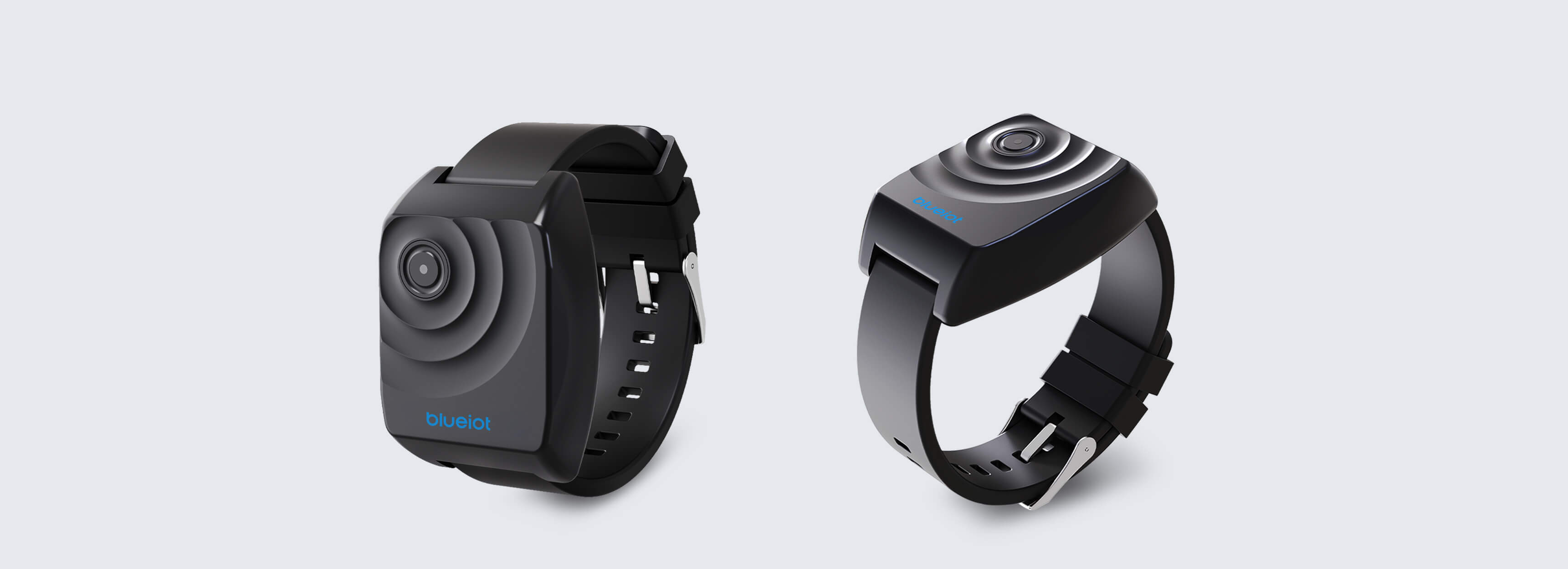

Wristband Type
BT1000-w
Features
High precision positioning, ranging accuracy up to 0.1~1m
Skin-friendly wrist band makes it highly comfortable to wear
Corrugated industrial design fits the industrial positioning scene
IP65 waterproof grade, to meet the industrial wet environment
Technical Specification
Frequency Band
2.4GHz ~ 2.4835GHz
Type of Antenna
Built-in omnidirectional antenna
Ranging Accuracy
0.1 ~ 1m
Refresh Rate
0.1Hz-30Hz, adjustable
Size
< 55mm×40mm×17mm
Length
40g
Buzzing
Vibration
RFID swipe card
Alarm button
bluetooth location tag bluetooth location tag

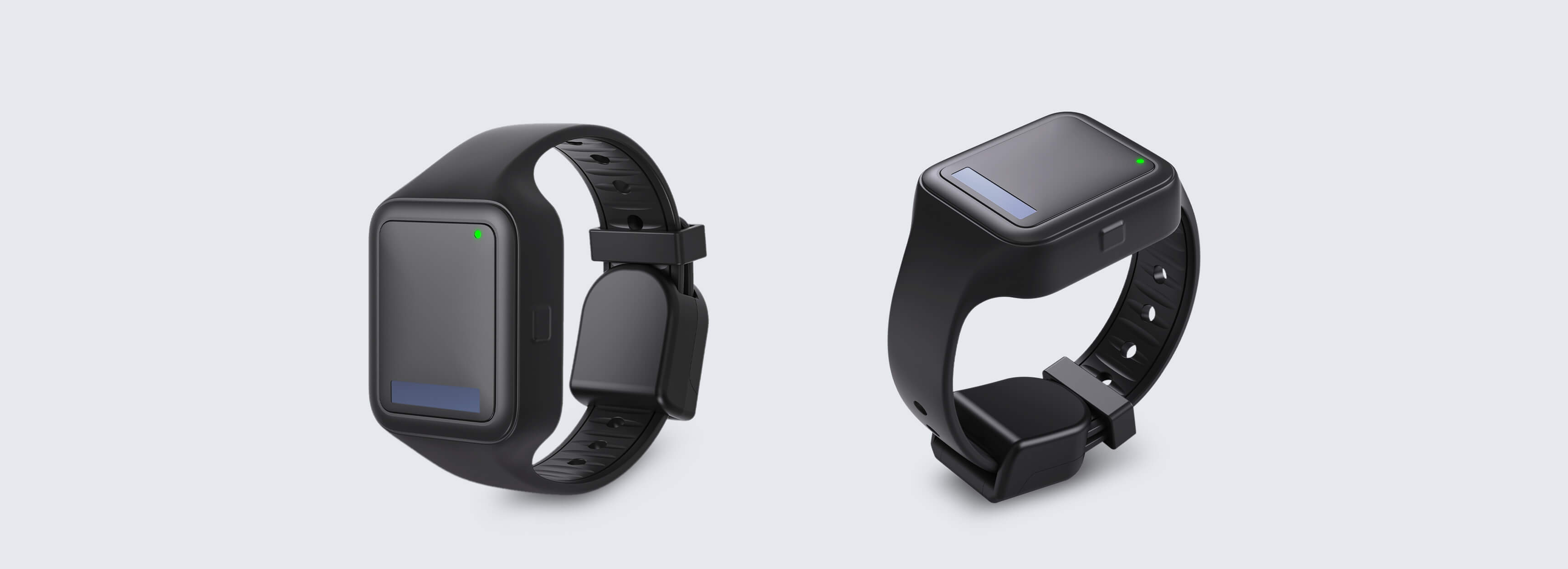

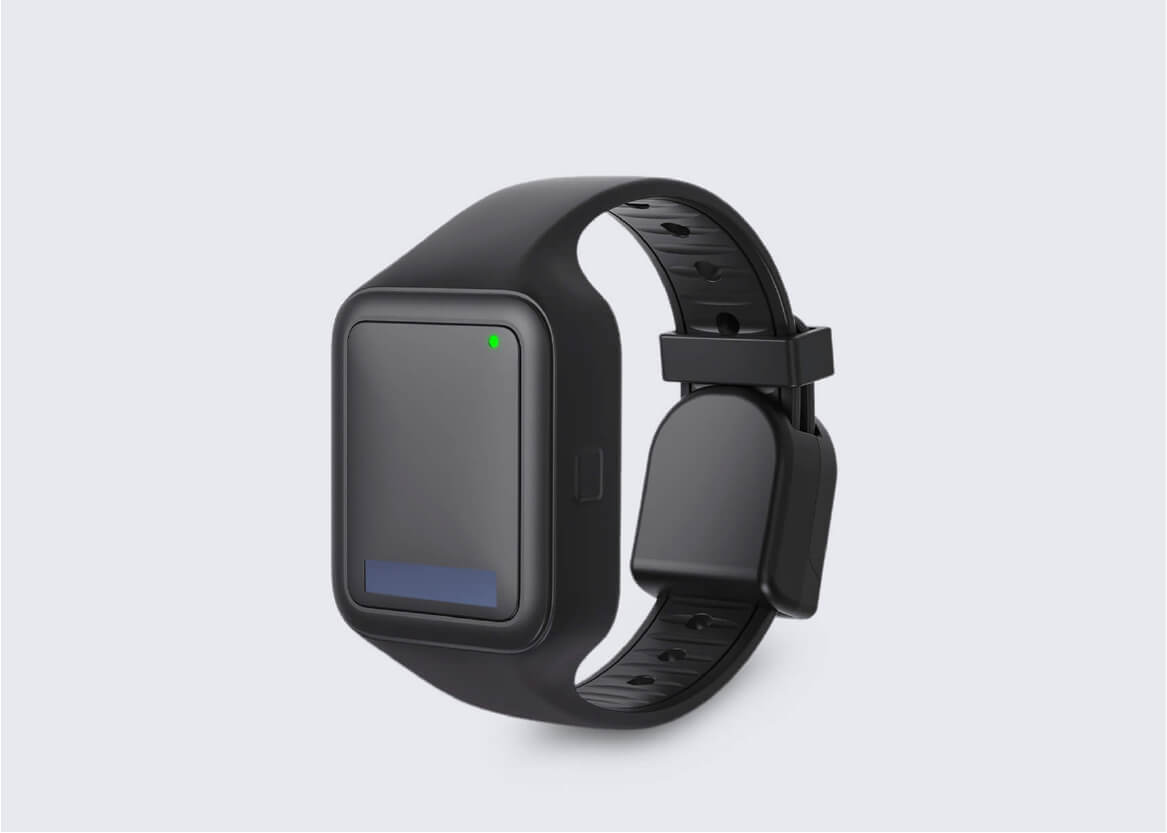

Tamper-proof Type
BT4500-b
Features
High precision positioning, ranging accuracy up to 0.1~1m
No steel anti-disassembly structure, avoid safety risks
Heart rate detection, pay attention to the user's health status
IP67 waterproof level, super long battery life, to meet the needs of judicial scene wearing
Technical Specification
Frequency Band
2.4GHz ~ 2.4835GHz
Type of Antenna
Built-in omnidirectional antenna
Ranging Accuracy
0.1 ~ 1m
Refresh Rate
0.1Hz ~ 30Hz,adjustable
Size
Main body < 45mm×40mm×20mm
Length
280mm
Weight
70g
Long battery life
RFID swipe card
Heart rate monitor
Anti-tamper alarm

Blueiot provides a full set of RTLS products and solutions applied to various scenarios. Try a DEMO now to explore our open and multifunctional platform.
